Full Hydraulic Portable Core Drill Light Rig

Name: Full Hydraulic Portable Core Drill Light Rig
Brand: SINOCOREDRILL
Price: 1 USD

Buy cheap Full Hydraulic Portable Core Drill Light Rig product

Place of Origin : CHINA

Brand Name : SINOCOREDRILL

Certification : CE

MOQ : N/A

Packaging Details : Sea Delivery Package

Delivery Time : 30Days

Payment Terms : T/T

Supply Ability : Based on Detailed Order

Contact Now

Full Hydraulic Portable Core Drill Light Rig

Specifications:

HYDX-2 Full Hydraulic Portable Drilling Rig is a kind of light rig designed for geological exploration in remote area difficult to enter. It is mainly suitable for diamond drilling with wire line coring technique. The rig consists of diesel power unit, hydraulic system, control panel, mast, main winch, wireline winch, drill head, feed system, footclamp, etc. The rig is completely hydraulic driven for all its surface coring function. Fission style design makes the rig in good assemblability and disassemblability, facilitating transportation to most inaccessible areas. Robust structure plus exact control system ensures high penetration rate and outstanding reliability.

Full Hydraulic Portable Core Drill Light Rig

Technical Parameters of HYDX-2 Core Drill Rig:

	Model	Parameters
	BQ	350 m
Drilling capacity	NQ	230 m
	HQ	120 m
	Model	5 doublecylinder R2V870 air-cooled diesel engine
Dynamical system	Rated power/weight	11kw/59kg
	Rated rotating velocity	2500r/min
Power head	Torque range Range of rotating speed	334-930 N.m 0-900 rpm
	Feeding and lifting stroke of oil tank	1700 mm
Feed system	Hoisting capacity	50 KN
	Feeding capacity	25 KN
	Max. lifting force	18 KN
Main winch	Lifting speed Wireline capacity	84 m/min 30 m
	Diameter of steel wire rope	φ12 mm
	Lifting power	8.4 KN
Wireline coring winch	Lifting speed Wireline capacity	90-240 m/min 500 m
	Diameter of steel wire rope	φ6 mm
Slurry pump	Type	BW-100A
Overall dimensions of host machine	Length × width ×height	3500×1500×1300 mm
Weight	Max. weight of disintegration part	100 kg

Product Tags:

Hydraulic drill rig

core drill rigs

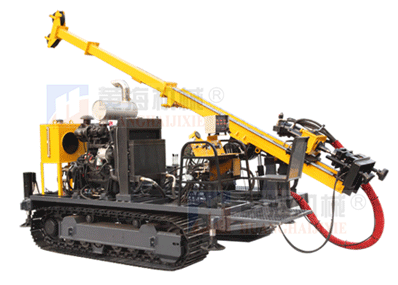

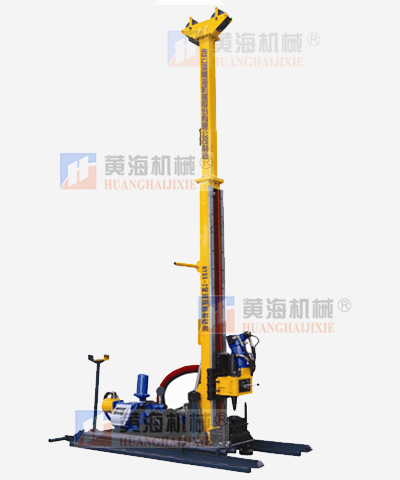

Full Hydraulic Portable Core Drill Light Rig Images
